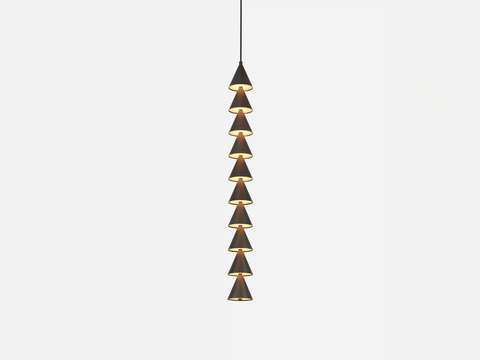

LEGATO SINGLE STRING PENDANT
Legato, a musical reference indicating a smooth and unbroken connection of notes, is a modular system of lights that follows this same principle. Legato is available in both vertical and horizontal configurations. The vertical strings offer flexible possibilities — from a pendant to a soaring column of modules. The modules can be oriented facing up, producing soft light reflected from the ceiling, facing down for more direct illumination, or a combination of both.
Dimensions
L6.25” x W6.25” x H60”
L6.25” x W6.25” x H6” (per cone)
Ø8” x H1” canopy
Height dependent upon configuration
Standard configuration: 10 cones (max 19 cones)
36" drop provided
20 lbs (standard configuration)
1.7 lbs (per cone)
Materials
Aluminum, brass, acrylic, textured graphite
diffuser orientation options:
Diffusers facing up
Diffusers facing down
Combination up-facing + down-facing
Details
ILLUMINATION
Integrated LED
2700K
5800 lumens / 36 watts (standard configuration)
580 lm / 3.6 watts (per cone)
LED Driver Dependent upon configuration
2-16 cones: VZM060W-24
17-19 cones: VZM100W-24
19 cones maximum
120-277 VAC input voltage
Dimming 0-10V
Lead Time
12 - 14 weeks approximately
